54-Inch Model 6000 Mixer

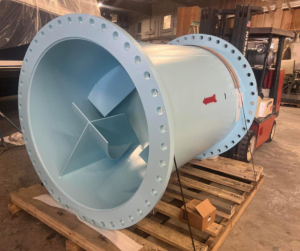

We shipped this 54-Inch Model 6000 Counter-Swirl Static Mixer to the Pittsburgh, Pennsylvania area to treat drinking water with sodium hypochlorite (chlorine). To this date it is the largest Model 6000 we have sold, and this model was chosen because of its excellent mixing — in only 3 diameters — with minimal headloss even at maximum flow rate.

Easily Meets Low Headloss Spec

The mixer will be used to blend 12.5% sodium hypochlorite (chlorine) into a 54 inch line. The flow rate through the mixer will vary from 20 to 91 millions of gallons of water a day. The mixer does all this while staying under 1 psi of headloss, meeting the specification called for.

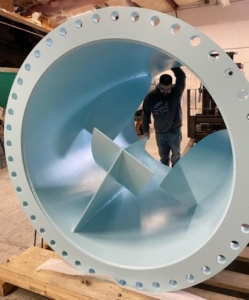

The Model 6000 is non-clog thanks to the leading 45 degree edge on the center fin, meeting another (typical) customer specification.

Base of Economical Carbon Steel

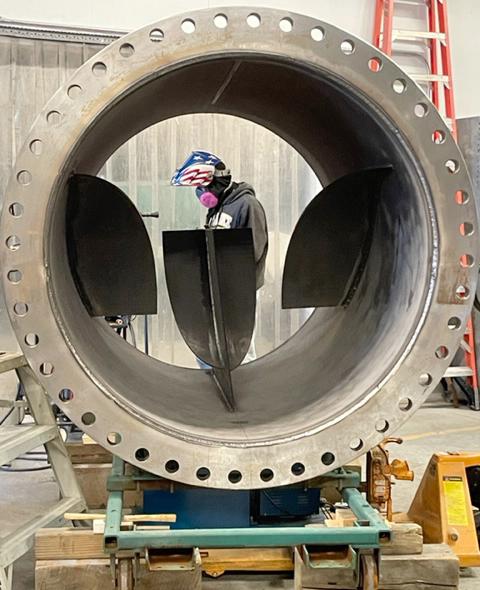

54-Inch Mixer made of carbon steel ready for its NSF-61 coating to be applied. With larger size mixers, (24 inches plus), the saving of using carbon steel offsets the cost of using special coatings.

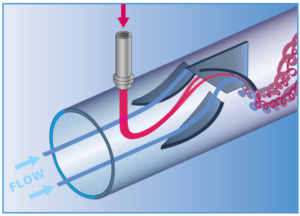

The Model 6000 Mixer features three curved fins welded to a pipe interior. The two lateral fins are inserted one to three inches upstream of the center fin. U.S. Patent 11,097,232

Mixing in 3 Diameters

The Model 6000 delivers complete mixing (CoV 0.025 and K-Value of 1.26) within three pipe diameters. It reduces space requirements and saves customers on the cost of additive because of its speed and effectiveness.
