Model 4000 Open Channel Static Mixer
Ideal for When There is a Bulkhead in the Channel
Westfall’s Open Channel Static Mixer 4000 offers a simple, affordable alternative to motorized mixers. It can be installed in tanks up to 20’ wide and 20’ deep, or in open water flows like irrigation and wastewater ditches. Attach it where there is a wall or bulkhead, or it can be configured to place in the center of an installation.
It uses the same advanced vane technology as Westfall’s other Low Headloss mixers, making it highly efficient at mixing in chemicals for potable water, with minuscule headloss.
In applications where reducing headloss is of primary importance, inlet cones and/or outlet diffuser cones can be used to further reduce headloss. Either or both can dramatically reduce headloss with minimal sacrifice to mixing efficiency.
Common Applications
Open Channel Water Treatment
for Waste Water or Potable Water
US Patent No. 9,221,022 B2
CoV & K-Values without Cones
Three-Vanes:
CoV = 0.008, K-Value = 2.95

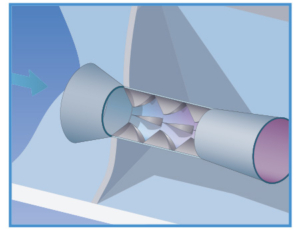

Inlet and Outlet Diffuser Cones decrease headloss further, with only slight reduction in mixing efficiency.
Advantages
• Excellent Mixing
• Low Permanent Pressure Loss
• Adapts to Variable Water Levels and Flow Rates
• 1, 2, or 3 Stages of Vanes
• Optional Inlet Cone and/or Outlet Diffuser Cone
• Minimal Maintenance
• Long Service Life
• Open Channels up to 20’ W and 20’ D

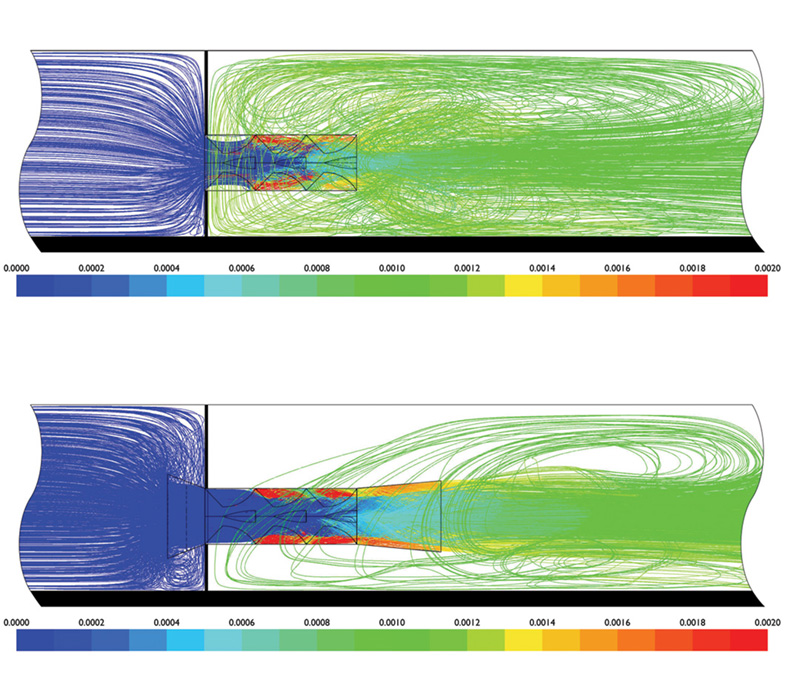

Alden Labs CFD Analysis:

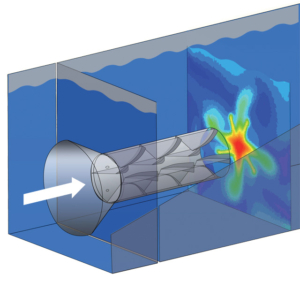

Computational Flow Model of Westfall’s 4000 Open Channel Mixer
