Counter-Swirl Static Mixer Model 6000
1.26 K-value and CoV mixing to 0.025 within 3 pipe diameters.
Westfall’s Counter-Swirl Static Mixer delivers complete mixing (CoV 0.025 and K-Value of 1.26) within three pipe diameters. This new product saves customers on the cost of additive because of its speed and effectiveness. The mixer also reduces space requirements.

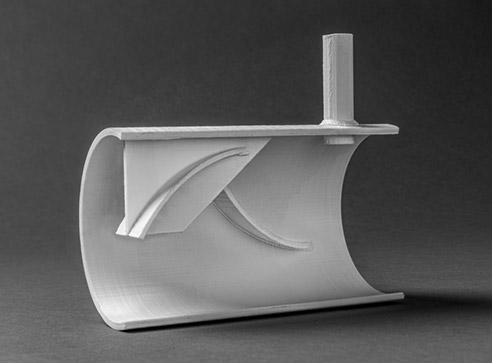

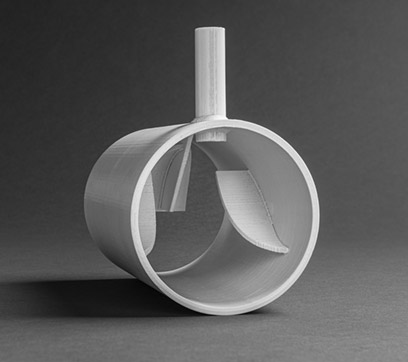

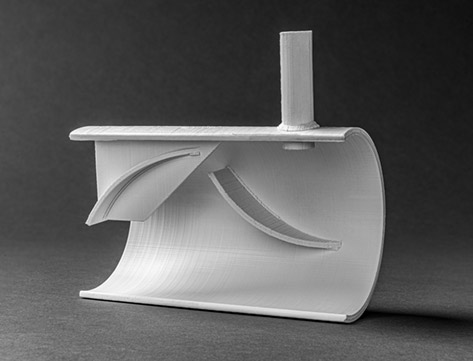

The Counter-Swirl Static Mixer features three slightly curved fins welded to a pipe interior. The two lateral fins are inserted one to three inches upstream of the injection port. The center fin is welded downstream of the injection port.

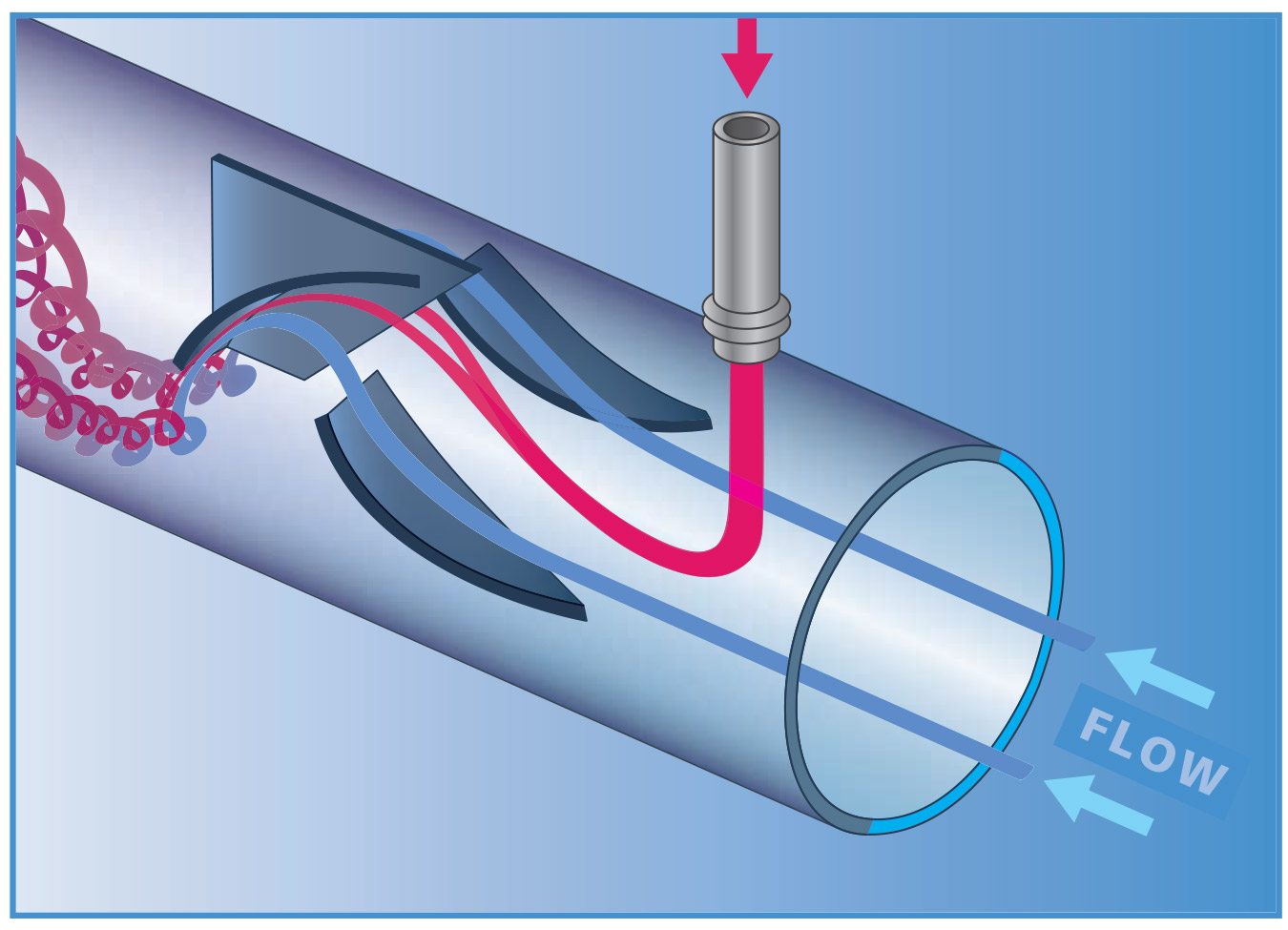

Incoming fluids or gases enter the counter rotating zone of turbulence as the additive is introduced. This results in complete mixing within three pipe diameters.
This addition to Westfall’s product line gives engineers a fresh option in their search for affordable high performance, low headloss static mixers.
All Westfall’s mixers are manufactured in-house and subjected to rigorous quality control and inspection prior to shipping.
Usage and Applications
Model 6000 Animation
- Desalination Plants
- Wastewater Utilities
- Oil and Gas providers
- Food and Beverage Processors
- Pulp and Paper Manufacturers
Benefits and Features
- Complete mixing in 3 pipe diameters
- Custom made to order
- Resists fouling
- Requires little to no maintenance
- Easy to install
- Low cost
- Easily shipped
- Pipe sizes .75″ to 120″
- Available in all standard pipe materials
- Can be 3D printed
- Integral injection fitting
- CFD designed and tested
- No external energy required
- No moving parts
